Knowhow of logging information.(Total data)

Knowhow of logging information.(Total data)
This page details knowhow of logging information.(Total data).

How to check Total logging file.

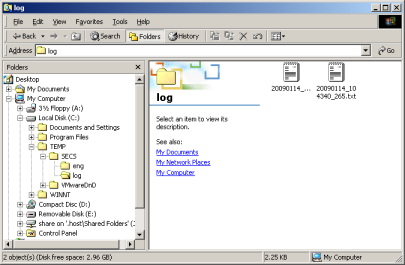

  1. Open the folder set by “SECS Log Directry” of the Setting Window by the Explorer.
    See “Details setting of the output directory etc.”.



    < Back | Next >


  2. Open the Total logging file that you want to check by Text-Editor or Viewer like Note-Pad.



    In default, extension of Total logging file is “.csv”.
    The logging file name format is “YYYYMMDD_HHmmSS_MS.csv”(MS:MicroSec.).
    You will only have to select a near file name according to the date that you want to check, and to open.

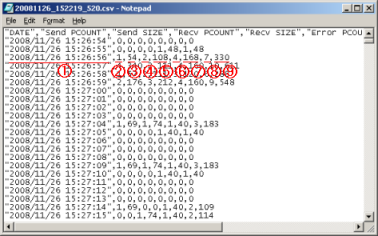

    Number in Figure Content
    1 Date and Time when Total data was logged.
    2007/08/23 17:15:29 : Date and Time when Total data was logged.(Date Time)
    2 Count of sent packet.
    3 Byte size of sent packet.
    4 Count of received packet.
    5 Byte size of received packet.
    6 Count of unknown packet
    7 Byte size of unknown packet.
    8 Count of found packet
    9 Byte size of found packet
