This page details information of the setting of the check item.

  1. What is “Ignore the data of checksum error.”?

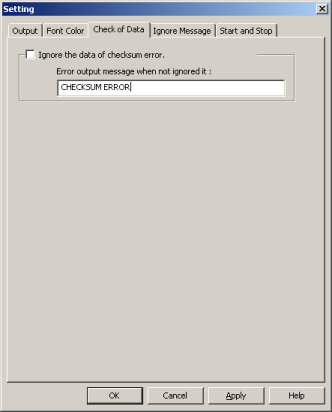

  1. If you want to show window of setting of the output directory etc.,you will click on “Setting…” in Main Window.
    * If this software is executing log, you must stop log.



    What is “Ignore the data of checksum error”?
    If you check this item, the data of checksum error will be ignored.
    Also if you does not check this item, the data of checksum error will be not ignored. And, if you input some words to “Error output message when not ignored it : “, it will be output to the logging file with the data of checksum error information like following image.

    # send... [ COM4 ]
    >> (s) 2009/02/18 14:41:18 [0x02 0000001C 19 80000102800100000011]
    <S01F02
        <L[2]
            <A[6]    "BGSECS">
            <A[3]    "1.0">
        >
    >
    << (e)

    # *** CHECKSUM ERROR
    # BINARY DATA DUMP(size=16[0x10])
    #  0  1  2  3  4  5  6  7  8  9  A  B  C  D  E  F     0123456789ABCFEF
    #  08 c0 41 ad 7b c0 13 66 b7 01 02 41 06 53 49 54    .タAュ{タ.fキ..A.SIT



    When the edit is finished, the “OK” button is clicked. Set information is reflected.
